Networked Gate Kit
Same tracking coverage as the Standard Gate Kit, but for spread-out parks where one of the two gates is too far to cable (beyond ~150m). A pair of LAN Ethernet Bridge modules carry the controller bus over IP to a remote SLAM at the far gate — extending our isolated ANPR network across the park.
This kit is for you if:
Your entry and exit gates are on opposite sides of the park, or separated by buildings, beyond ~150m cable run.
What's in the box

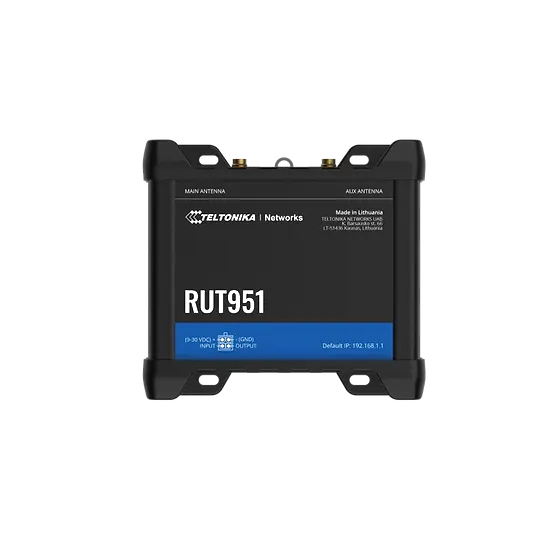

Teltonika RUT951 Cellular Router

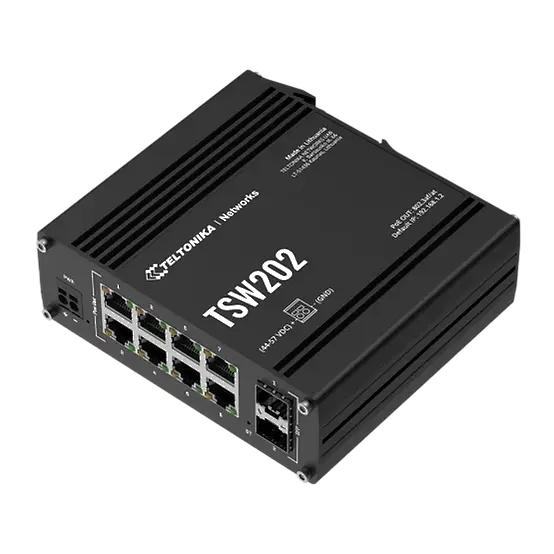

Teltonika TSW202 POE+Managed Ethernet Switch

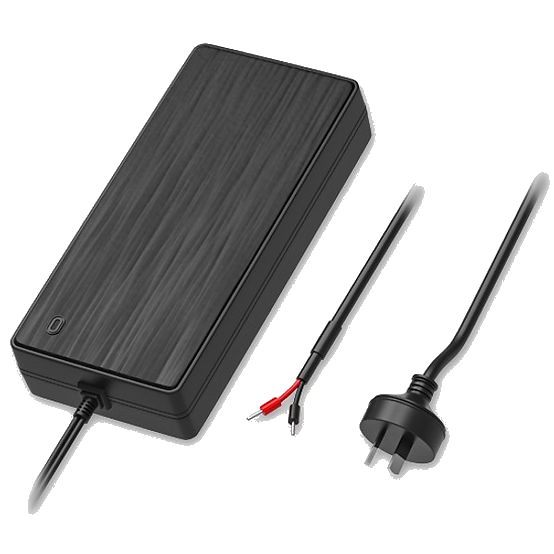

Teltonika 2 Pin AU Power Supply, 250W For TSW202

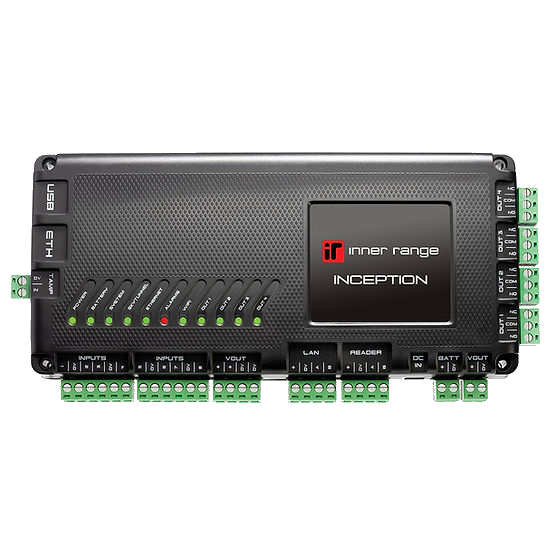

Inner Range Inception Controller

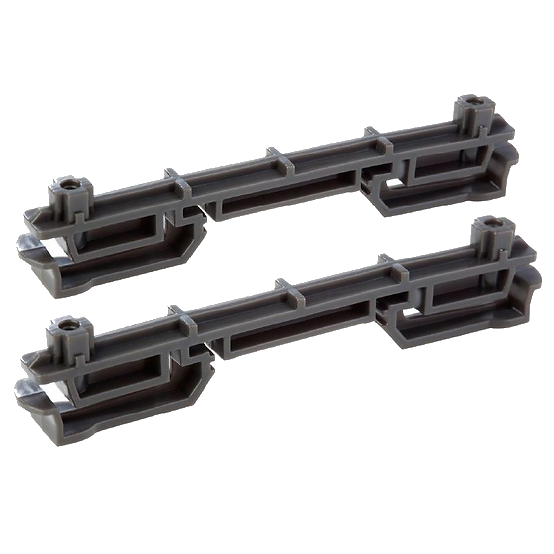

DIN Rail Clips to Suit Inception Controller

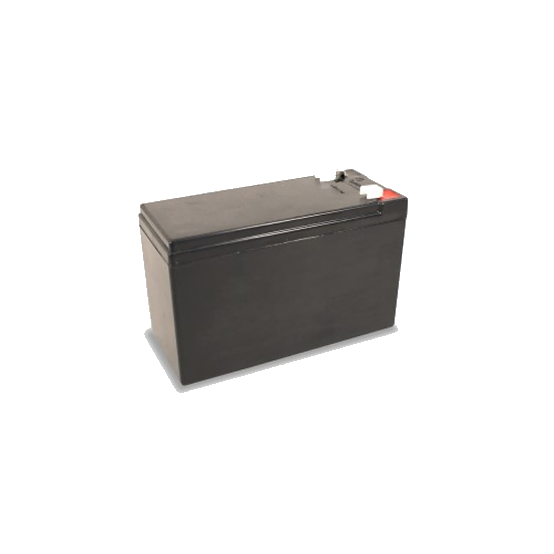

12V 7.0Ah Sealed Lead Acid Battery Backup

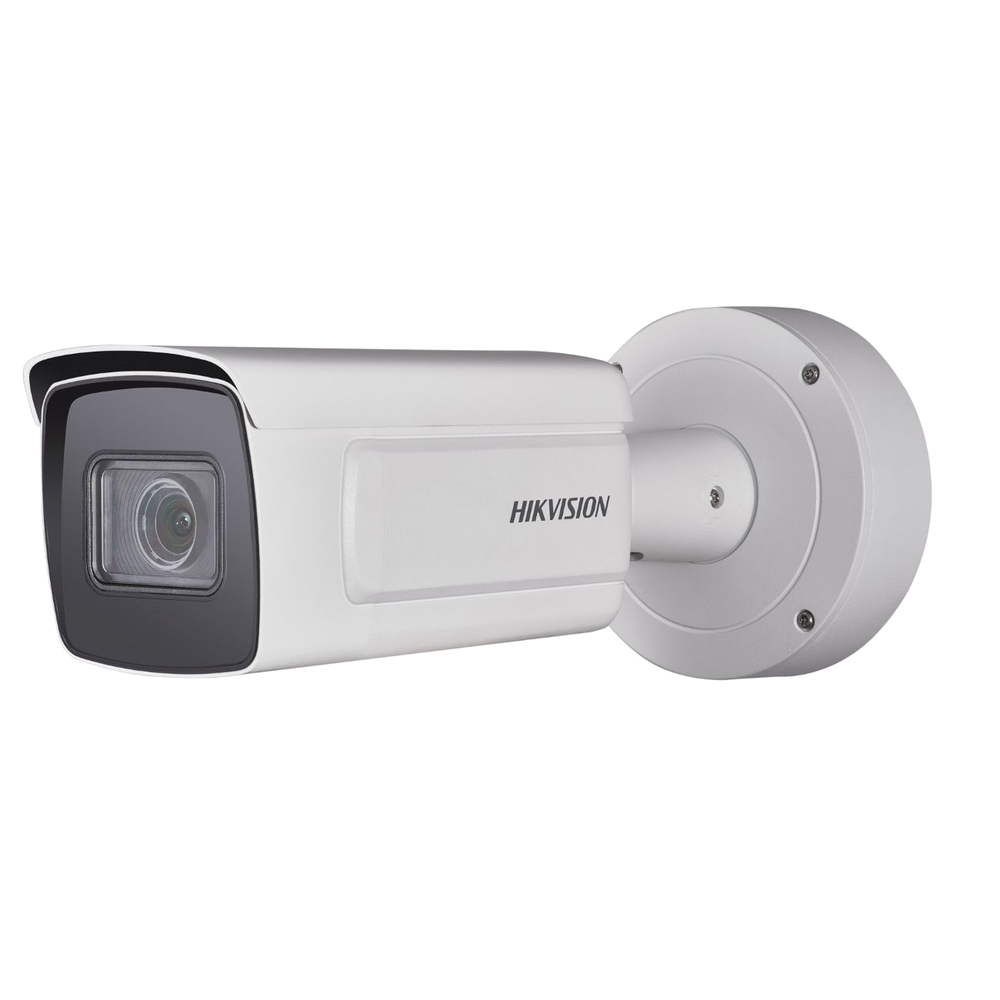

Hikvision 4MP ANPR Bullet Camera 8-32mm

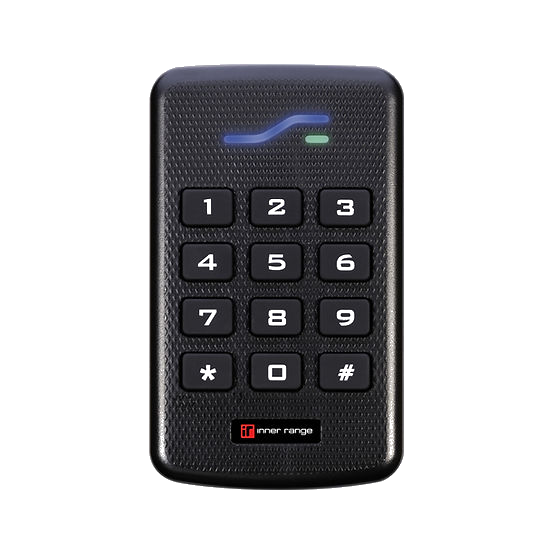

Inner Range SIFER Keypad

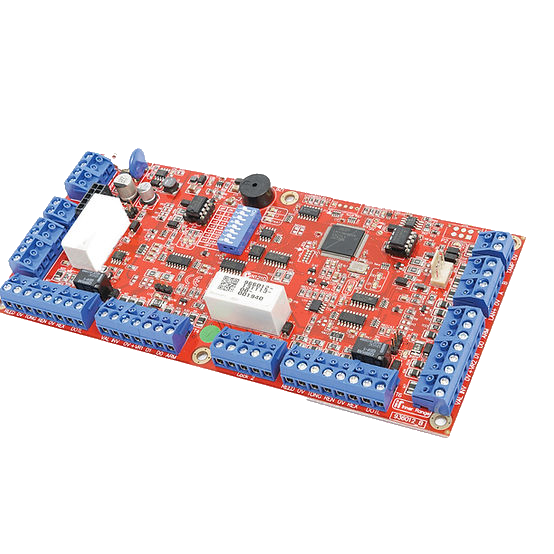

Standard 2 Door LAN Access Module (SLAM)

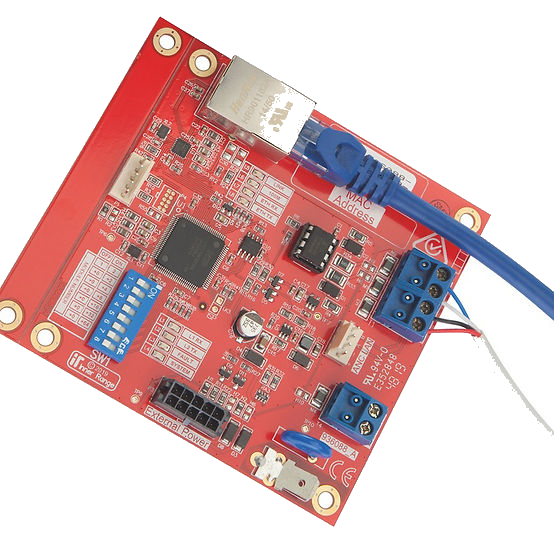

Inception LAN Ethernet Bridge Module
What this enables
- Everything in the Standard Gate Kit
- Remote gate linked over IP via a LAN Bridge pair
- Extends the controller bus past the ~150m direct-cable limit
- Runs over your park's existing network backbone
Camera suits
Camera mounted 3–30m from where plates are captured, angled within 30° of head-on (both horizontally and vertically). Vehicles approach at normal park entry speeds, day or night.
We'll confirm this once more at checkout.
What you'll also need
This kit covers the SmartParks hardware only. The following are not included and are typically arranged through your local gate or security installer:
Boom gates or sliding gates
The physical barriers themselves. If you already have gates, we connect to them. If not, your installer can supply and fit them.
Security cable for access control
Inner Range-spec shielded twisted-pair cable (e.g. Belden 9842 or equivalent) between the Inception controller, SLAMs, and SIFER keypads. Quantity depends on your site layout.
Ethernet cabling for cameras and network
Cat5e or Cat6 Ethernet from the PoE switch to each ANPR camera, and — for the Networked kit — between the two LAN Ethernet Bridges across the park.
Mains power and conduit
240V power runs to the controller and to each gate location, plus trenching or above-ground conduit where needed.
Bollards for keypad mounting
Many sites already have bollards. If you need them, they're sold separately — a pair per keypad location.
Physical installation
Mounting, wiring, commissioning, and testing — handled by your local gate or security installer. We configure the software once the hardware is in place.
Internet at the controller location
The kit includes a 4G cellular router, but this only works if there's adequate 4G signal. Wired internet from your office is usually preferred if available.
inc-GST, shipping included
Kit hardware only — cabling, boom gates, and physical install are not included.
Software subscription sold separately. See pricing.
By purchasing, you agree to our Terms of Sale.
